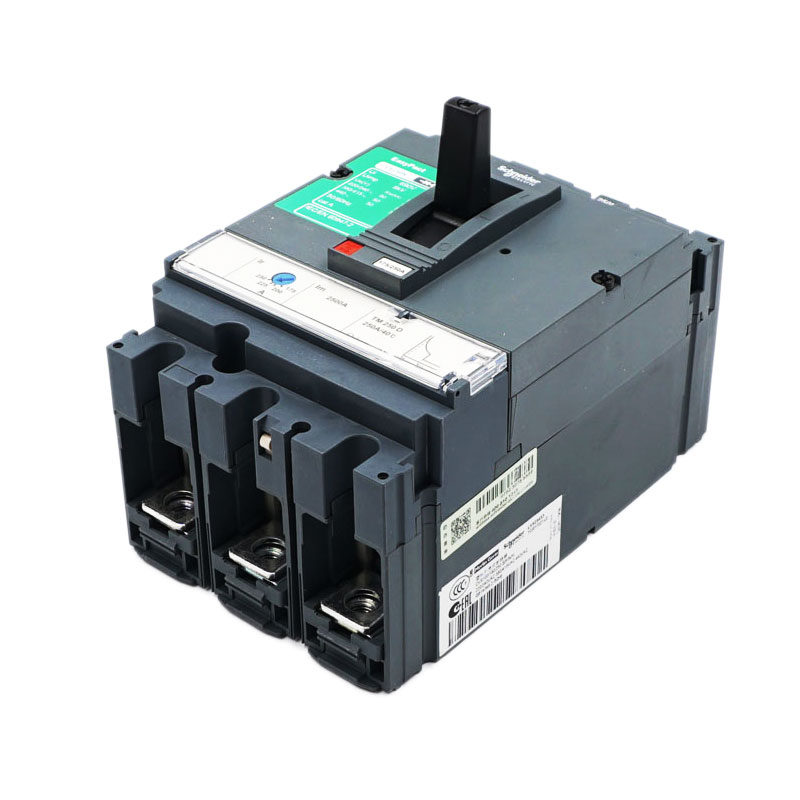

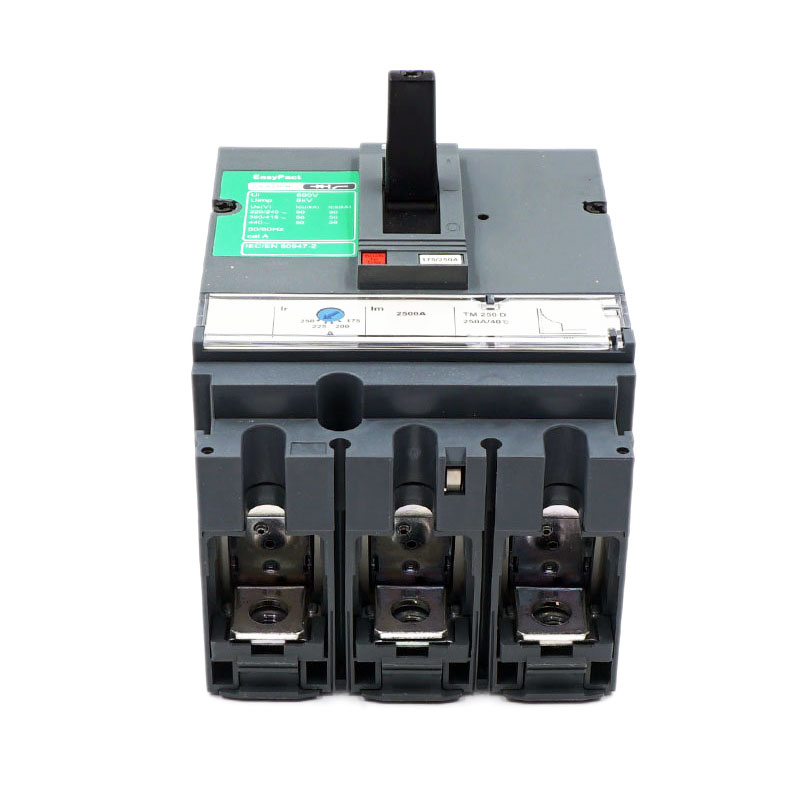

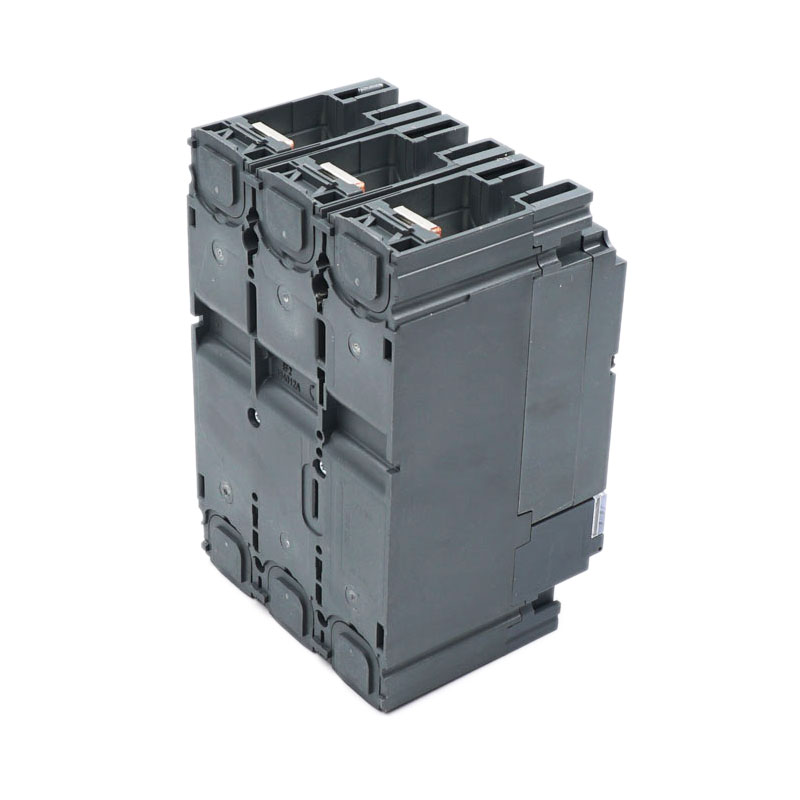

施耐德CVS塑壳断路器特性
配电保护,接地故障保护和电动机保护
污染等级三级
工作温度-25°C to +70°C,工作湿度95%,并已通过盐雾测试
符合CCC和ROHS标准
制造工厂通过ISO9001和ISO14000认证
配电保护
>CVS全系列提供热磁脱扣器,可提供过载保护和短路保护
- 过载保护
Ir可调
延时时间不可调
- 短路保护
短路保护功能Im值部分可调,一旦短路电流超过设定值,断路器会瞬间脱扣。
>400/630提供电子脱扣器可提供过载保护和短路短延时及瞬动保护,保护功能通过整定调节旋钮来设定。
接地故障保护
>接地故障保护功能可通过VigiCVS断路器或Vigirex继电器实现。
电动机保护
>装有MA脱扣器的断路器可与热继电器和接触器或启动器组合使用
>短路保护功能门限值Im可调,超过该整定值时触发瞬时脱扣。
与通用附件结合,为客户节省成本
质保期 : 18个月
施耐德CVS塑壳断路器优势
追求品质,简单选择
性能出众,兼顾成本
施耐德CVS塑壳断路器应用
CVS塑壳断路器主要应用于住宅、建筑和中小型工业
施耐德CVS塑壳断路器安装
EasyPact CVS断路器可以水平或垂直安装，也可以平仰或顶部安装，不会影响其性能。有三种安装方式：
固定式
插入式
抽出式
如果采用后两种安装方式，需要在固定式的基础上添加相应的附件（底座、侧板等）。很多连接附件对这三种方式都是通用的
施耐德CVS塑壳断路器型号一览
|
产品规格 |
额定电流 |
分段能力KA |
固定式3极 |
固定式4极 |
|
CVS100E |
15 |
25 |
LV510832 |
LV510850 |
|
CVS100E |
20 |
25 |
LV510834 |
LV510852 |
|
CVS100E |
25 |
25 |
LV510835 |
LV510853 |
|
CVS100E |
30 |
25 |
LV510836 |
LV510854 |
|
CVS100E |
40 |
25 |
LV510838 |
LV510856 |
|
CVS100E |
50 |
25 |
LV510840 |
LV510858 |
|
CVS100E |
60 |
25 |
LV510841 |
LV510859 |
|
CVS100E |
75 |
25 |
LV510843 |
LV510861 |
|
CVS100E |
80 |
25 |
LV510844 |
LV510862 |
|
CVS100E |
100 |
25 |
LV510845 |
LV510863 |
|
CVS100B |
16 |
25 |
LV510300 |
LV510310 |
|
CVS100B |
25 |
25 |
LV510301 |
LV510311 |
|
CVS100B |
32 |
25 |
LV510302 |
LV510312 |
|
CVS100B |
40 |
25 |
LV510303 |
LV510313 |
|
CVS100B |
50 |
25 |
LV510304 |
LV510314 |
|
CVS100B |
63 |
25 |
LV510305 |
LV510315 |
|
CVS100B |
80 |
25 |
LV510306 |
LV510316 |
|
CVS100B |
100 |
25 |
LV510307 |
LV510317 |
|
CVS100F |
16 |
36 |
LV510330 |
LV510340 |
|
CVS100F |
25 |
36 |
LV510331 |
LV510341 |
|
CVS100F |
32 |
36 |
LV510332 |
LV510342 |
|
CVS100F |
40 |
36 |
LV510333 |
LV510343 |
|
CVS100F |
50 |
36 |
LV510334 |
LV510344 |
|
CVS100F |
63 |
36 |
LV510335 |
LV510345 |
|
CVS100F |
80 |
36 |
LV510336 |
LV510346 |
|
CVS100F |
100 |
36 |
LV510337 |
LV510347 |
|
CVS100N |
16 |
50 |
LV510470 |
LV510480 |
|
CVS100N |
25 |
50 |
LV510471 |
LV510481 |
|
CVS100N |
32 |
50 |
LV510472 |
LV510482 |
|
CVS100N |
40 |
50 |
LV510473 |
LV510483 |
|
CVS100N |
50 |
50 |
LV510474 |
LV510484 |
|
CVS100N |
63 |
50 |
LV510475 |
LV510485 |
|
CVS100N |
80 |
50 |
LV510476 |
LV510486 |
|
CVS100N |
100 |
50 |
LV510477 |
LV510487 |
|
CVS100H |
16 |
70 |
LV510500 |
LV510510 |
|
CVS100H |
25 |
70 |
LV510501 |
LV510511 |
|
CVS100H |
32 |
70 |
LV510502 |
LV510512 |
|
CVS100H |
40 |
70 |
LV510503 |
LV510513 |
|
CVS100H |
50 |
70 |
LV510504 |
LV510514 |
|
CVS100H |
63 |
70 |
LV510505 |
LV510515 |
|
CVS100H |
80 |
70 |
LV510506 |
LV510516 |
|
CVS100H |
100 |
70 |
LV510507 |
LV510517 |
|
CVS160B |
100 |
25 |
LV516301 |
LV516311 |
|
CVS160B |
125 |
25 |
LV516302 |
LV516312 |
|
CVS160B |
160 |
25 |
LV516303 |
LV516313 |
|
CVS160F |
100 |
36 |
LV516331 |
LV516341 |
|
CVS160F |
125 |
36 |
LV516332 |
LV516342 |
|
CVS160F |
160 |
36 |
LV516333 |
LV516343 |
|
CVS160N |
100 |
50 |
LV516461 |
LV516466 |
|
CVS160N |
125 |
50 |
LV516462 |
LV516467 |
|
CVS160N |
160 |
50 |
LV516463 |
LV516468 |
|
CVS160H |
100 |
70 |
LV516476 |
LV516481 |
|
CVS160H |
125 |
70 |
LV516477 |
LV516482 |
|
CVS160H |
160 |
70 |
LV516478 |
LV516483 |
|
CVS250B |
200 |
25 |
LV525302 |
LV525312 |
|
CVS250B |
250 |
25 |
LV525303 |
LV525313 |
|
CVS250F |
200 |
36 |
LV525332 |
LV525342 |
|
CVS250F |
250 |
36 |
LV525333 |
LV525343 |
|
CVS250N |
200 |
50 |
LV525452 |
LV525457 |
|
CVS250N |
250 |
50 |
LV525453 |
LV525458 |
|
CVS250H |
200 |
70 |
LV525467 |
LV525472 |
|
CVS250H |
250 |
70 |
LV525468 |
LV525473 |
|
产品规格 |
额定电流 |
分段能力KA |
插入式3极 |
插入式4极 |
|
CVS100E |
15 |
25 |
LV510832P |
|
|
CVS100E |
25 |
25 |
LV510835P |
|
|
CVS100E |
30 |
25 |
LV510836P |
|
|
CVS100E |
40 |
25 |
LV510838P |
|
|
CVS100E |
50 |
25 |
LV510840P |
|
|
CVS100E |
60 |
25 |
LV510841P |
|
|
CVS100E |
80 |
25 |
LV510844P |
|
|
CVS100E |
100 |
25 |
LV510845P |
|
|
CVS100B |
16 |
25 |
LV510300P |
LV510310P |
|
CVS100B |
25 |
25 |
LV510301P |
LV510311P |
|
CVS100B |
32 |
25 |
LV510302P |
LV510312P |
|
CVS100B |
40 |
25 |
LV510303P |
LV510313P |
|
CVS100B |
50 |
25 |
LV510304P |
LV510314P |
|
CVS100B |
63 |
25 |
LV510305P |
LV510315P |
|
CVS100B |
80 |
25 |
LV510306P |
LV510316P |
|
CVS100B |
100 |
25 |
LV510307P |
LV510317P |
|
CVS100F |
16 |
36 |
LV510330P |
LV510340P |
|
CVS100F |
25 |
36 |
LV510331P |
LV510341P |
|
CVS100F |
32 |
36 |
LV510332P |
LV510342P |
|
CVS100F |
40 |
36 |
LV510333P |
LV510343P |
|
CVS100F |
50 |
36 |
LV510334P |
LV510344P |
|
CVS100F |
63 |
36 |
LV510335P |
LV510345P |
|
CVS100F |
80 |
36 |
LV510336P |
LV510346P |
|
CVS100F |
100 |
36 |
LV510337P |
LV510347P |
|
CVS100N |
16 |
50 |
LV510470P |
LV510480P |
|
CVS100N |
25 |
50 |
LV510471P |
LV510481P |
|
CVS100N |
32 |
50 |
LV510472P |
LV510482P |
|
CVS100N |
40 |
50 |
LV510473P |
LV510483P |
|
CVS100N |
50 |
50 |
LV510474P |
LV510484P |
|
CVS100N |
63 |
50 |
LV510475P |
LV510485P |
|
CVS100N |
80 |
50 |
LV510476P |
LV510486P |
|
CVS100N |
100 |
50 |
LV510477P |
LV510487P |
|
CVS100H |
16 |
70 |
LV510500P |
LV510510P |
|
CVS100H |
25 |
70 |
LV510501P |
LV510511P |
|
CVS100H |
32 |
70 |
LV510502P |
LV510512P |
|
CVS100H |
40 |
70 |
LV510503P |
LV510513P |
|
CVS100H |
50 |
70 |
LV510504P |
LV510514P |
|
CVS100H |
63 |
70 |
LV510505P |
LV510515P |
|
CVS100H |
80 |
70 |
LV510506P |
LV510516P |
|
CVS100H |
100 |
70 |
LV510507P |
LV510517P |
|
CVS160B |
100 |
25 |
LV516301P |
LV516311P |
|
CVS160B |
125 |
25 |
LV516302P |
LV516312P |
|
CVS160B |
160 |
25 |
LV516303P |
LV516313P |
|
CVS160F |
100 |
36 |
LV516331P |
LV516341P |
|
CVS160F |
125 |
36 |
LV516332P |
LV516342P |
|
CVS160F |
160 |
36 |
LV516333P |
LV516343P |
|
CVS160N |
100 |
50 |
LV516461P |
LV516466P |
|
CVS160N |
125 |
50 |
LV516462P |
LV516467P |
|
CVS160N |
160 |
50 |
LV516463P |
LV516468P |
|
CVS160H |
100 |
70 |
LV516476P |
LV516481P |
|
CVS160H |
125 |
70 |
LV516477P |
LV516482P |
|
CVS160H |
160 |
70 |
LV516478P |
LV516483P |
|
CVS250B |
200 |
25 |
LV525302P |
LV525312P |
|
CVS250B |
250 |
25 |
LV525303P |
LV525313P |
|
CVS250F |
200 |
36 |
LV525332P |
LV525342P |
|
CVS250F |
250 |
36 |
LV525333P |
LV525343P |
|
CVS250N |
200 |
50 |
LV525452P |
LV525457P |
|
CVS250N |
250 |
50 |
LV525453P |
LV525458P |
|
CVS250H |
200 |
70 |
LV525467P |
LV525472P |
|
CVS250H |
250 |
70 |
LV525468P |
LV525473P |
